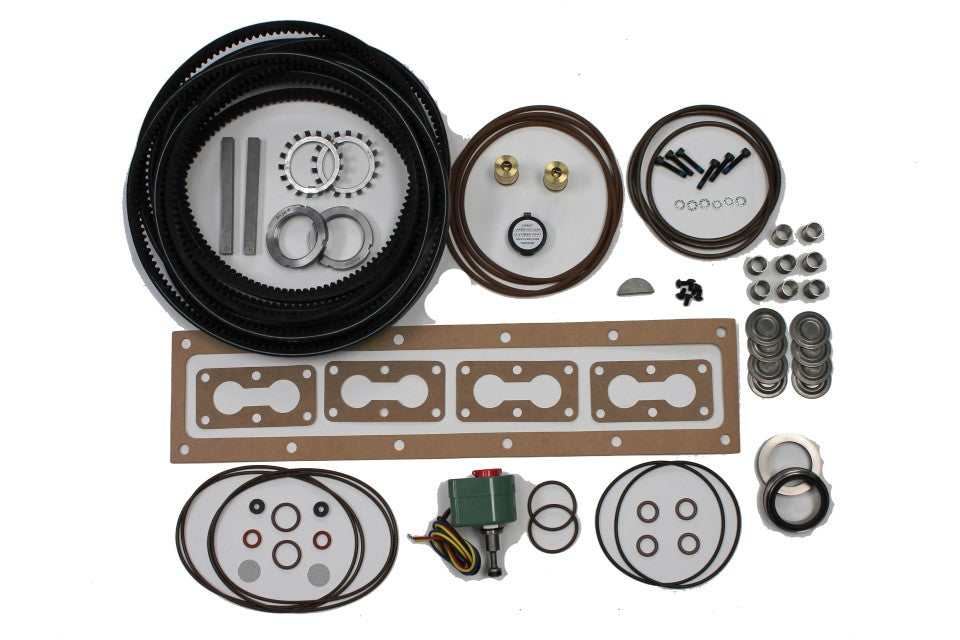

412J-MNB-S

This major rebuild kit is used on the Stokes® 412J-14 vacuum pump. It is not used on the 412H-11 and is not compatible with the newer style poppet valve decks.

Contents:
(8) 272-963-002 Stainless Clappers
(8) GLV-274172002 Stainless Valve Springs
(6) GLV-085050357 Lens Retainer Cap Screws*
(6) GLV-085050361 Center Bearing Ring Cap Screws*
(6) GLV-085050362 Center Bearing Ring Lock Washers*
(4) GLV-085041609 Oil Manifold Block O-Rings
(4) GLV-243926002 Valve Plate Gaskets
(2) GLV-085019491 Lock Washers*
(2) GLV-085019492 Lock Nuts*
(2) GLV-085019755 End Cap O-Rings
(2) GLV-085050115 Stem Valve O-Rings
(2) GLV-085050116 Lens O-Rings
(2) GLV-085050117 Side Cover O-Rings
(2) GLV-085050120 Stem Valve Seal Washers
(2) GLV-085050122 Check Valves
(2) GLV-085050128 Wire Mesh Screens
(2) GLV-085050192 Check Valve Retainer O-Rings
(2) GLV-408324005 Eccentric Keys*
(1) GLV-085011247 Dow Corning High Vacuum Grease*
(1) GLV-085029600 Mechanical Seal
(1) GLV-085050118 Reservoir Cover O-Ring
(1) GLV-085050119 Housing O-Ring
(1) GLV-085050126 Vee Belt Set
(1) 085-050-129 Dual Voltage Solenoid Valve*
(1) GLV-264524001 Woodruff Key*
(1) GLV-269037001 Oil Baffle Gasket
(1) GLV-TOOL-03 Oil Removal Tool

* Indicates items that are in addition or enhanced from the OEM kit. Kit pricing reflects a discount from component pricing.
